McAlpine TSG52 Gravity Waste - Stainless Steel top for Tiled floors

McAlpine TSG52 Gravity Waste - Stainless Steel top for Tiled floors

Free Next day UK wide delivery

See Delivery tab below for terms

Our Price:  £65.00(Exc. 20% VAT)(£78.00 Inc. VAT)



Part Number:  TSG52-T150SS
Brand:  McAlpine



Relief Available

see VAT Exemption form for details

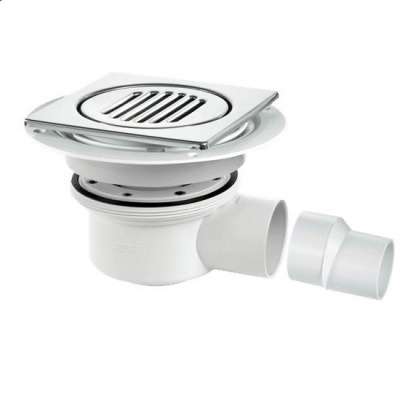

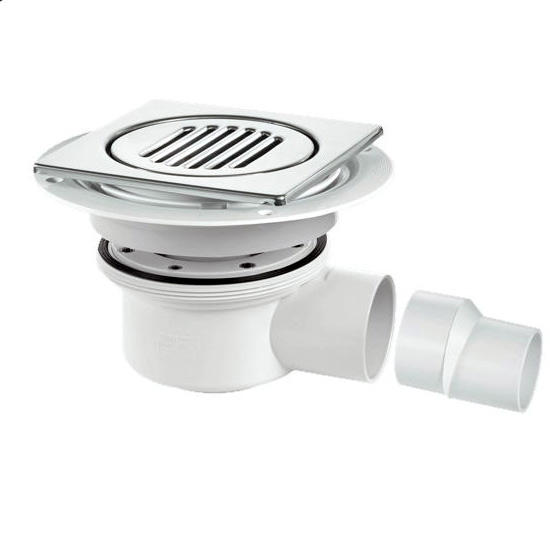

McAlpine TSG52 Wet Room Waste Outlet with Stainless Steel Square Top

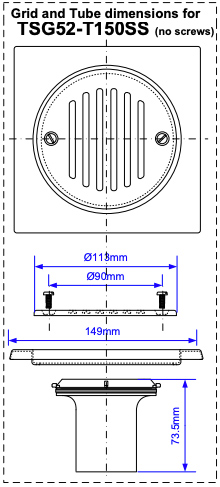

TSG52-T150SS technical drawing dimensions of the top. Plan drawing

Industry leading McAlpine TSG52-T150SS Gravity wet room waste outlet for sheet Tiled flooring.

Two Piece 50mm Water Seal Trapped Gully, Tile/Grating with removable Grid, 2" Horizontal Outlet and 2" x 1½" Socket Reducer

The McAlpine TSG52 Gravity waste has a flow rate of 48 litres per minute which exceeds the minimum requirement.

The McAlpine TSG52 is a two-piece 50mm water seal trapped gully that has been specifically designed for use with floor formers.

Features of the McAlpine TSG52 Gravity Waste - Stainless Steel top for Tiled floors

  • 50mm Water Seal
  • 2" BS EN 1329-1:2000 Solvent Weld Horizontal Outlet
  • Supplied with and 2" to 1½" socket reducer
  • Tiled or stone floor gully suitable for concrete and suspended timber floors
  • Manufactured in ABS to the highest quality
  • Overall height 100mm
  • Flow rates of 48 litres per minute exceed the minimum requirement of EN 1253-2:2003 and are variable dependent on the cover plate used
  • Ideal for showers in domestic wet rooms, disabled and student accommodation, bathroom pods, retirement and care homes, hotels, hospitals and sport and leisure

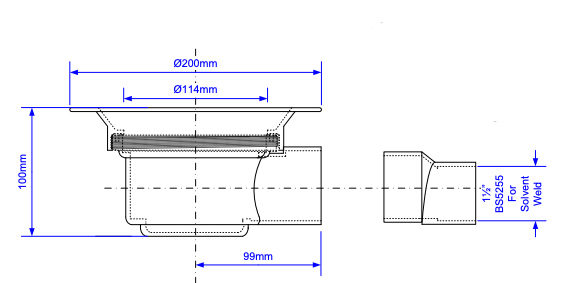

McAlpine TSG52-T150SS side elevation technical drawings
