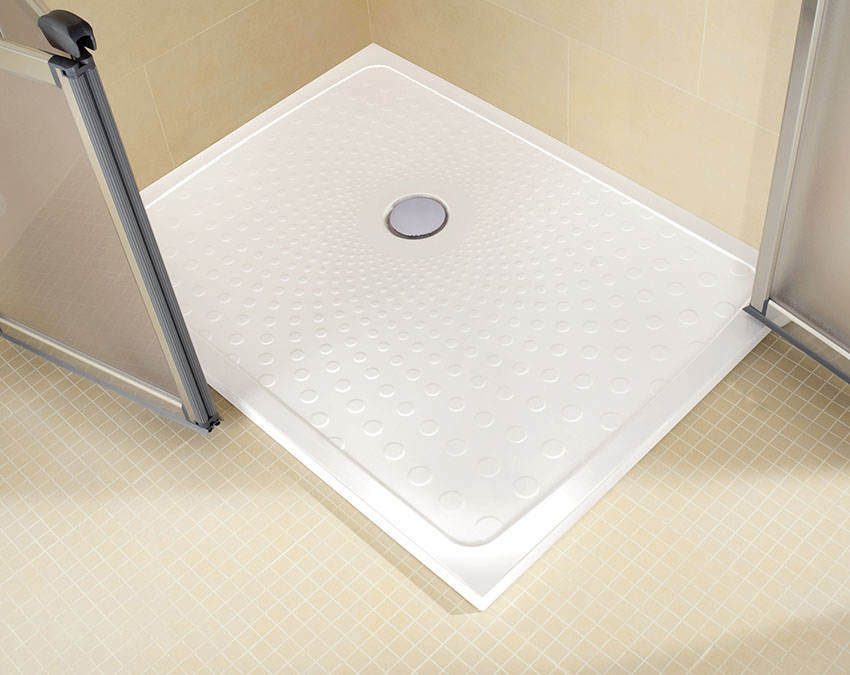

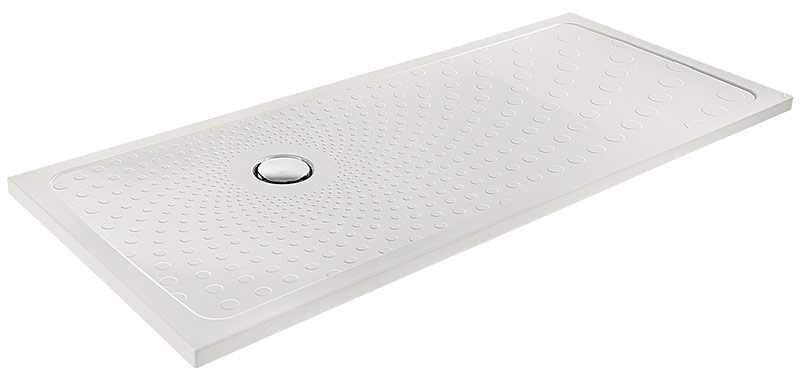

Impey Slimline Shower Tray
The Impey Slimline tray has the best drainage flow rate of any equivalent tray on the market and is suitable for mixer and electric showers. It is also strong enough to support a weight of up to 250kg (40 stone) and offer greater slip resistance.
To achieve this we created a raised tread pattern to provide a greater contact area. Independent testing in accordance with DIN 51097:1992 proved that the Slimline shower tray is more slip resistant than previous Impey shower trays.
The result is a low access high performance tray of contemporary design only 35mm high with class leading drainage of up to to 38 litres of water per minute.
Now with an improved DIN '51097' certified slip resistant tread pattern.
The Slimline shower tray is 35mm high and available in 9 size options. It can be recessed into the floor or surface mounted with a sloping ramp around the entire perimeter for easier access. Robust GRP construction will support up to 250kg (40 stone). Service ducting to conceal pipe work is available, which makes installation easier by removing the need to chase out the floor or walls.
In optimum conditions flow rates of up to 38 litres/minute are possible with Slimline 35 making it suitable for mixer and electric showers.
Each Slimline 35 tray is supplied complete with 90mm waste trap (IMOR/H) and a 3.5m roll of waterproof fabric tiling up-stand.

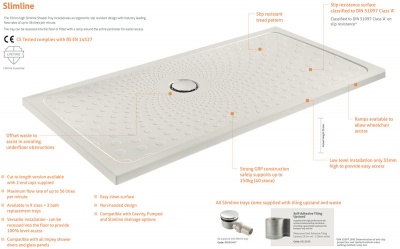

Features of Impey Slimline Shower Tray
Only 35mm high
Slip resistant tread pattern
Safely supports up to 250kg (40 stone)
Off-centre drain position to avoid joists
Maximum flow rate of up to 38 litres per minute
Supplied with a waterproof tiling up-stand*
Supplied with a 90mm horizontal waste water trap* (other options available)

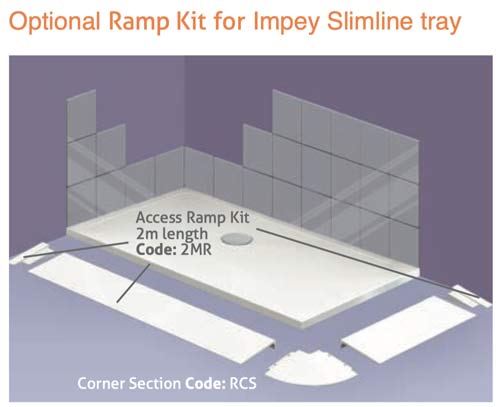

Ramp options available
Service ducting available
Compatible with all Impey shower doors and panels
Available in 9 sizes
Sizes of Impey Slimline Shower Tray available:
Size: 800 x 800mm Code: SL358080
Size: 900 x 900mm Code: SL359090
Size: 1000 x 1000mm Code: SL351010
Size: 1200 x 750mm Code: SL3512075
Size: 1200 x 900mm Code: SL3512090
Size: 1300 x 700mm Code: SL3513070
Size: 1300 x 750mm Code: SL3513075
Size: 1500 x 750mm Code: SL3515075
Size: 1700 x 750mm Code: SL3517075*
* cut to length version with end cap supplied - trim with suitable power tool. Compatible with service ducting and ramp kit.
