AKW Tri Form Linear Waste - Floor Former

Free Next Day UK wide delivery

See Delivery tab below for terms and cut off times


Our Price:  £465.00(Exc. 20% VAT)(£558.00 Inc. VAT)

Part Number:  21205 & 21215 & 25126
Brand:  AKW

AKW Formsafe Waterproofing KitsAKW Formsafe Waterproofing Kits


Relief Available

see VAT Exemption form for details



Select the size of Tri form floor former along with type and size of grill you require from the drop down lists given above and add to basket.
Each Tri-form ordered comes with one GW50 waste gulley trap as standard, (details given below in related product section). The Tri-forms can take up to three gulleys if required. If you need additional gulleys, they can be purchased from the 'Related products' shown at the bottom of the page and added to basket.

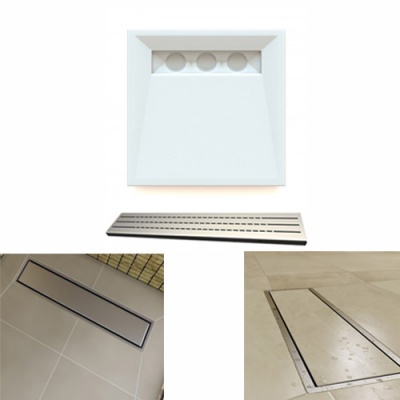

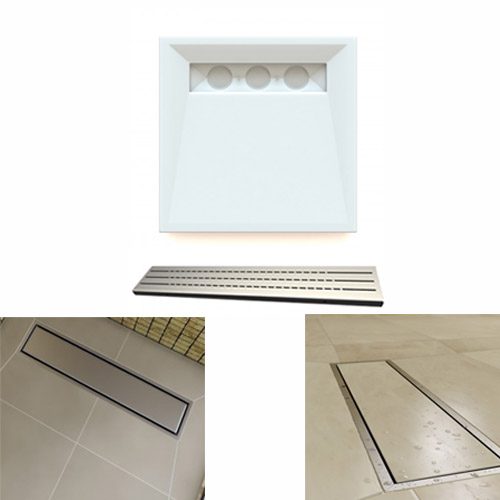

AKW Tri Form Linear Waste - Floor Former

AKW TriForm Linear floor former performs superbly and looks even better to create a truly aspirational bathroom experience.

Offering a perfectly level access solution, TriForm can be used with a wide range of tiles guaranteeing a style to suit your personal taste.

The TriForm can drain even the most powerful showers quickly and efficiently.

Easy to fit TriForm offers enhanced strength through its material composition, guaranteeing longevity and maintenance free installation.

TriForm performs superbly and looks even better to create a truly aspirational bathroom experience.

AKW Tri-Form Floor Former Specification

  • Floor former Thickness :  22mm

  • Suitable for Wooden base :  Yes

  • Suitable for Concrete base :  Yes

  • Suitable for Vinyl :  No

  • Suitable for Tiles :  Yes

  • Can it be cut down :  Yes - up to within 200mm of the waste slot

  • Maximum Weight Capacity :  40st / 253kg

  • Does it need full under boarding :  No

  • Is waste outlet supplied as standard :  Yes - Select your waste type from the drop down list at the top of the page.

Additional information on AKW Tri-Form Linear Waste Floor former

  • On-trend contemporary style.

  • Can accommodate tiles up to 2.5cm / 1 inch thick through the choice of waste grill when ordering.

  • Exceptional draining, capable of handling 78 litres p/m through 3 easy fit wastes.

  • Integral trough, providing excellent water proofing and no need for silicone.

  • Made from GRP with strong mineral resin composition.

  • Steel stringers are added for increased structural support and reinforcing panels add stability.

  • Made from 100% recyclable material delivering an environmentally friendly solution.

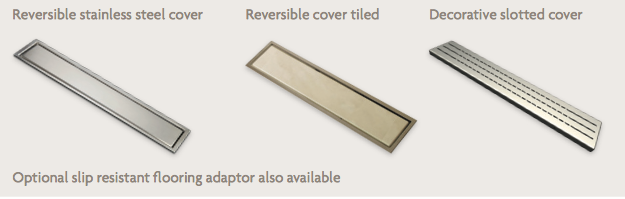

Choice of 3 waste coverings

For Tiled floors :

      a Reversible 2 in 1 waste cover offering 2 different finishes,

Tiled or brushed stainless steel

      or a decorative steel finish.

                  Available for 6-16mm tiles or 16-25mm tiles

Not Suitable for vinyl flooring

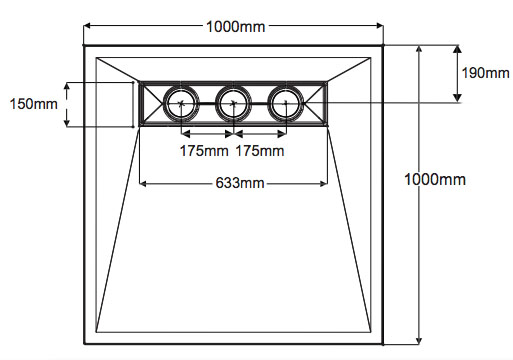

Dimension drawings for the 4 available sizes.

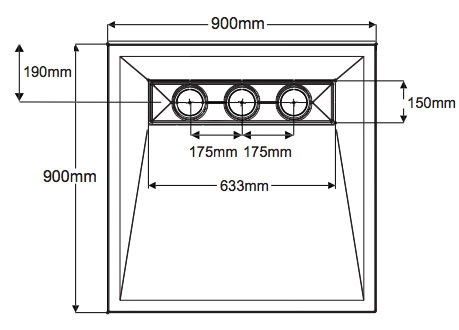

Tr-form linear waste deck 900x90 dimensions

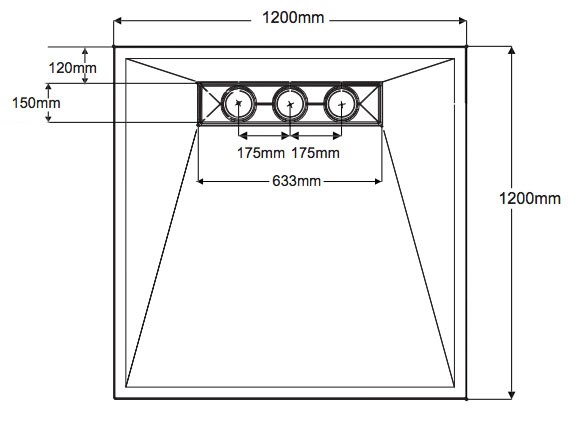

1200x1200 Triform linear waste deck dimensions

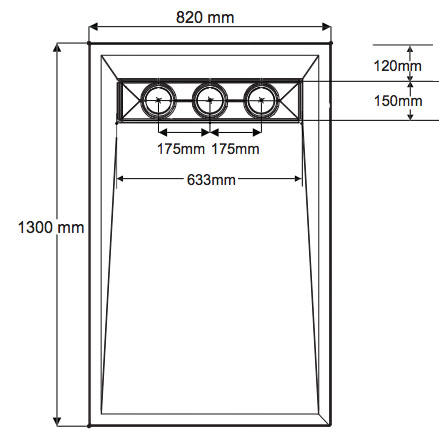

Tri-form deck with linear waste outlet dimensions













Available Downloads for AKW Tri Form Linear Waste - Floor Former


The AKW Tri Form Linear Waste Floor Former Product Brochure
