McAlpine VSG1 Low Depth Gravity Waste for Vinyl Flooring

McAlpine VSG1 Low Depth Gravity Waste Outlet with non return valve

The McAlpine VSG1 Waste Outlet acts as a non return valve, the weight of the water discharge will open the valve and it will re-seal when the discharge has ceased eliminating the release of foul air due to backflow.

The gully top of the McAlpine shower waste can be easily removed to facilitate easy cleaning of the gully. Flow rate of 30 litres per minute when tested with a 15mm head of water. Push on cover plate, will remain in place when pressure is applied from a wheelchair or when stood on.​

Features of the McAlpine VSG1 Low Depth Gravity Waste for Vinyl Flooring

• Suitable for use with flexible sheet flooring in wet rooms.

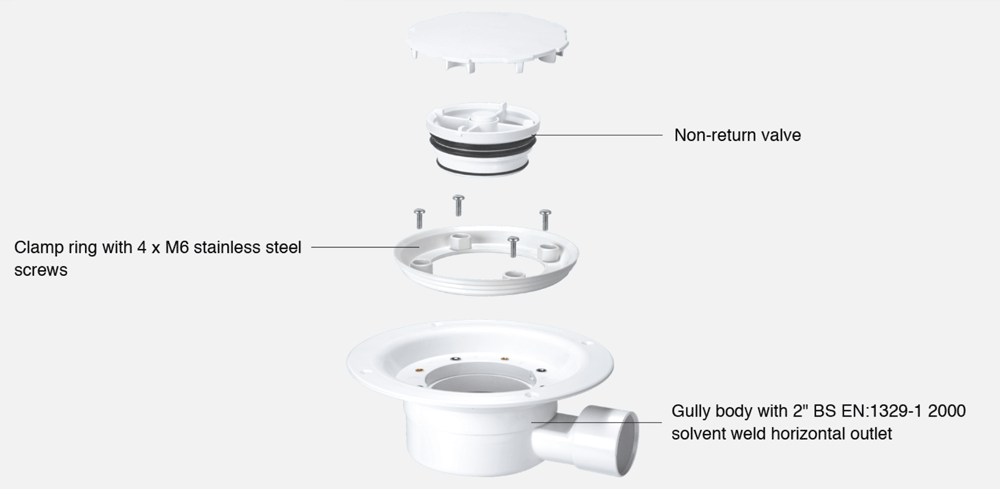

• Valve Shower Gully, White Plastic Clamp Ring and Cover Plate, 1½" Horizontal Outlet  1½" BS EN 1329-1:2000 Solvent Weld Horizontal Outlet
• Sheet floor gully suitable for concrete and suspended timber floors
• Manufactured in ABS to the highest quality
• The valve of the McAlpine gravity waste acts as a non-return valve, the weight of the water discharge will open the valve and it will reseal when the discharge has ceased thus prohibiting foul air from entering the dwelling.
• Eliminates the release of foul air due to back flow.

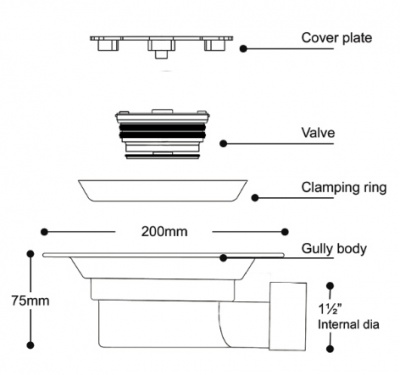

• Overall height of only 75mm and suitable for installation in floors where depth is restricted.
• The valve can be easily removed to facilitate easy cleaning
• Flow rates of up to 36 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 272-2:2002
